This 3-phase installation cabinet is designed for safe and efficient power distribution, suitable for both residential and commercial applications. The cabinet contains six fully wired groups and three two-pole earth leakage circuit breakers with a sensitivity of 30 mA, ensuring optimal protection and reliable performance.

Key specifications

• Six groups fully wired for optimal performance
• Three two-pole earth leakage circuit breakers (30 mA), distributed across 2-2-2 groups
• Four-pole 40A main switch for central control
• Durable and robust design made from high-quality materials
• Optimized distribution per phase for stable operation
• Compatible with ABB Hafonorm system for flexible expansions
• Space-saving and compact design
• Clear wiring management for easy maintenance

Efficient and safe power distribution

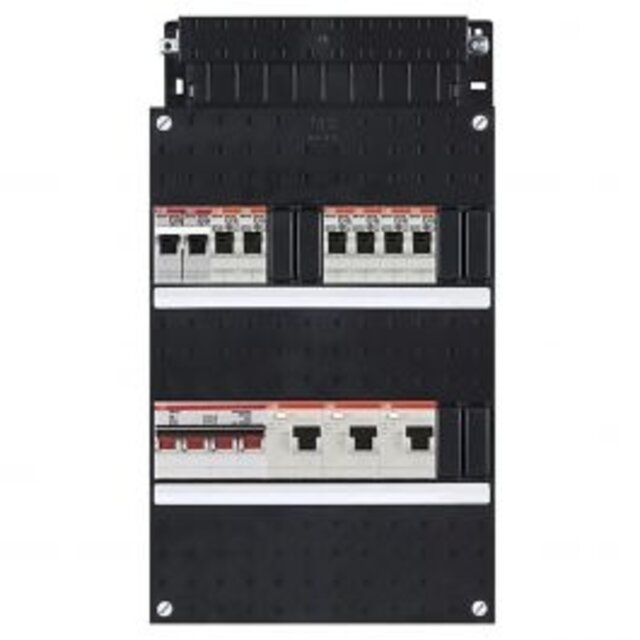

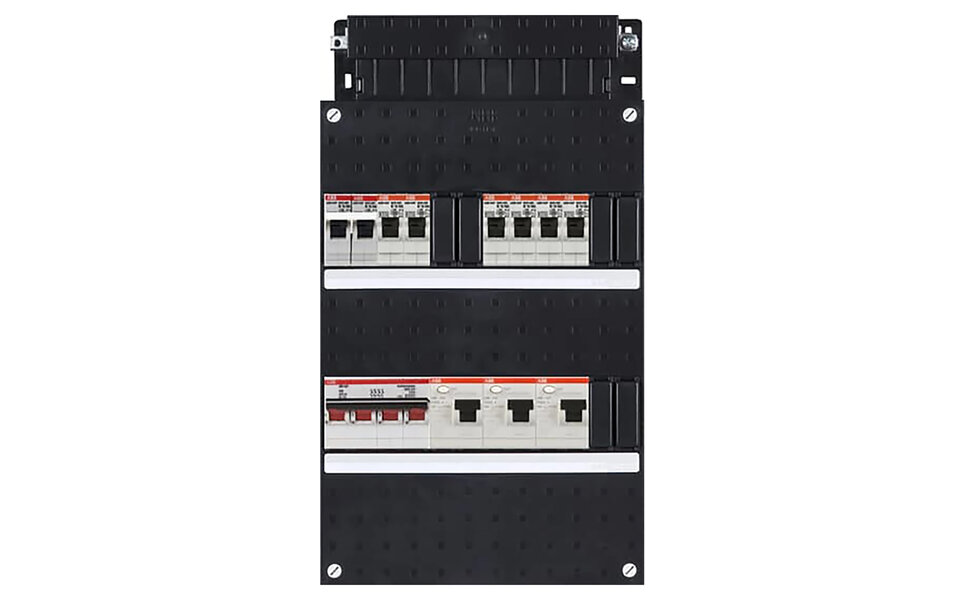

The ABB Hafonorm 6x Rear 3x 30mA + F + HS distribution board offers a reliable solution for power distribution in various applications. With six fully wired groups and three two-pole earth leakage circuit breakers that effectively detect leakage currents, this board meets high safety standards and is suitable for both residential and light commercial environments.

Optimal protection and balance

The three earth leakage circuit breakers are each connected to a separate phase, ensuring a balanced load distribution. This increases the safety of the installation and offers excellent protection against leakage currents. The four-pole main switch allows the entire power supply to be switched off easily and safely, providing extra security for users and equipment.

Sustainable and future-proof design
